Chest Freezer Inner Tank Metal Forming

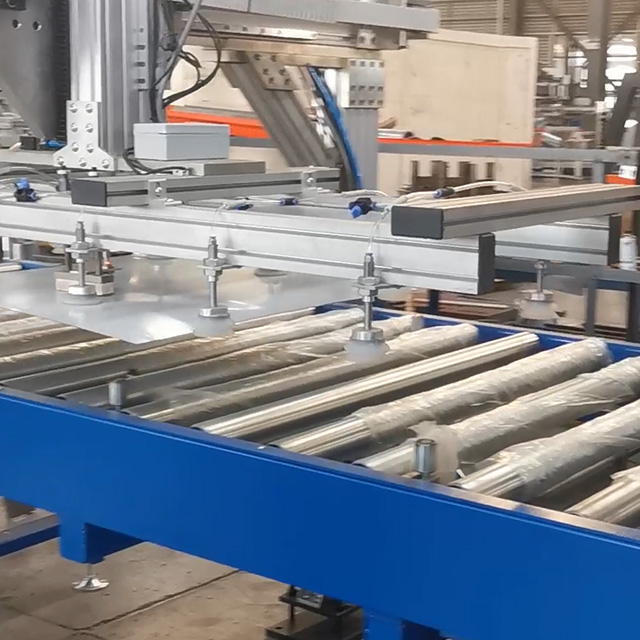

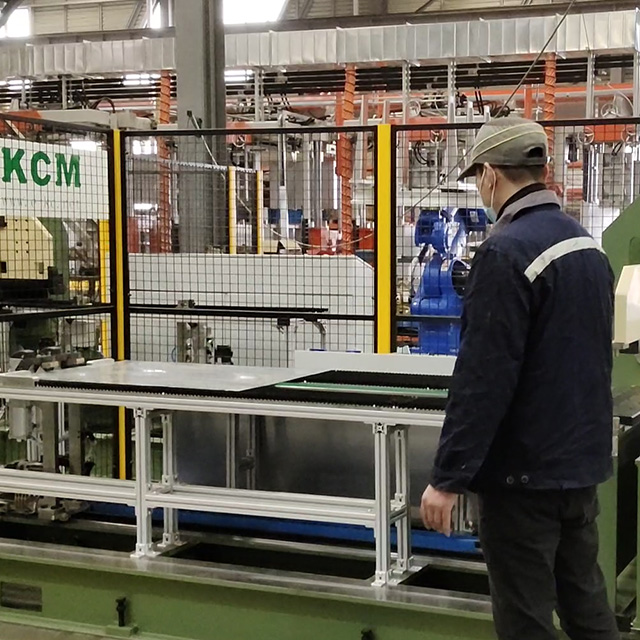

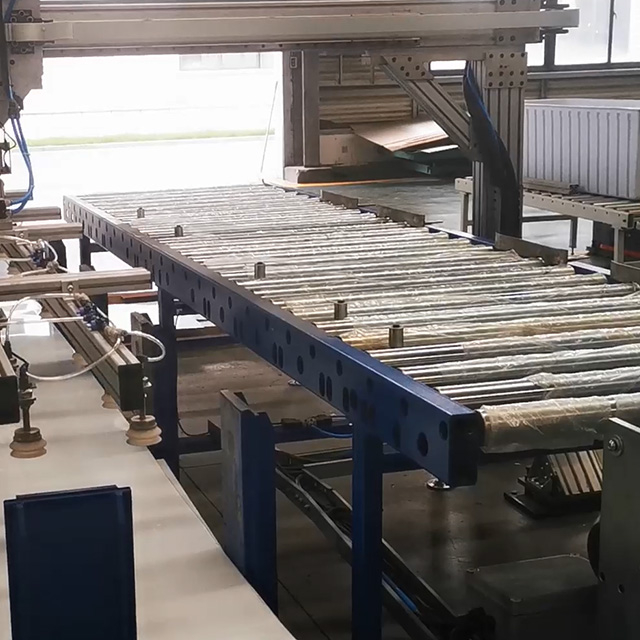

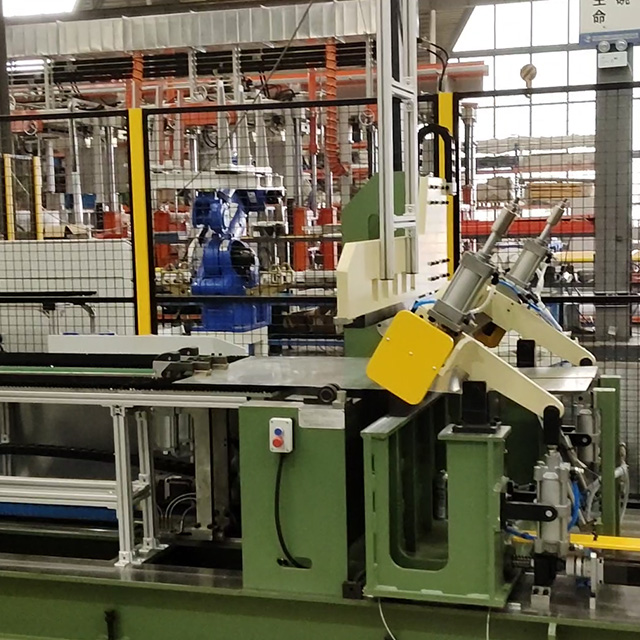

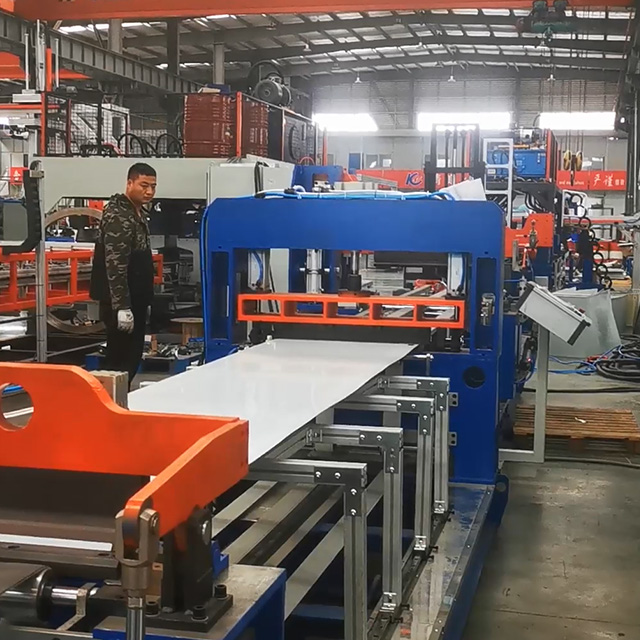

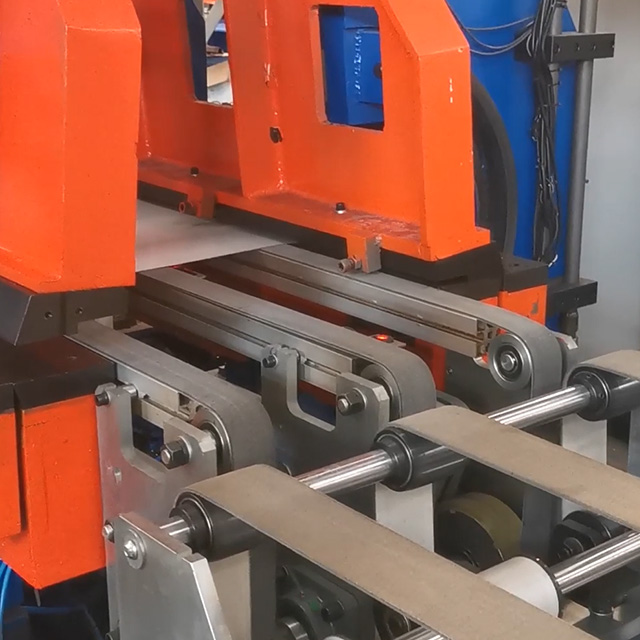

This line mainly compose of Plate Decoiling Flattening Shearing Machine, Positioning machine, punching machine, storage station for 4 models, 180 ° turn over, roller forming machine for foot bending, compressor window forming, End side bending and controlling box forming, combine U bending, Gantry Picker for Unloading→ Placing to Belt Conveyor → Manually Moving to Storage Area. , pneumatic system, Hydraulic system, electricity control system and etc.

Performance Data Of Technology

• Production line Dimensions (Reference): About L56000*W8500*H5000;

• Height for workpiece: from ground 900mm;

• Stations: 10;

• The work of the beat: about 45 seconds / piece;

• Work piece materials used:

  • Unpainted sheet steel.

  • PCM (prepainted) the painted metal.

  • VCM or PVC steel (with a covering of PVC or vinyl).

  Thickness of sheet 0,4-0,6 of mm.

  Test and line acceptance it should be carried out with thickness of sheet 0.5 mm.

• Adjustment scope for the product size:

  The limiting sizes of Side Panels of Chest Freezer:

  • Length: 1100-2100 mm.

  • Width: 550…650 mm.

  • Deepth: 700-800

• Electric supply: AC380V, 50HZ, the total power of about 95KW;

• Gas source: 1 / 2 "(0.5-0.65Mpa);

• Water supply: Industrial water.( 25 litres/minute)
