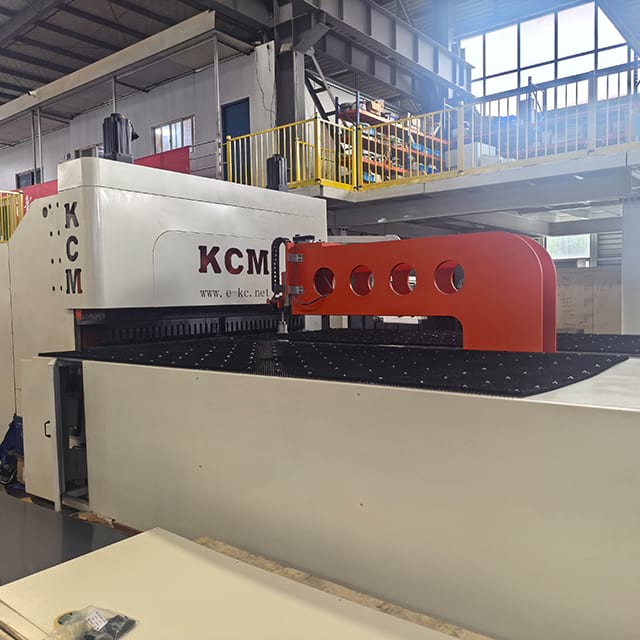

CNC Bending Machine

Name

Bending Unit 1500C-V1.0

Machine parameters

Standard 13-axis configuration

Front and rear bending axis X1/X2;
Bending axis Y1/Y2 up and down;
Upper and lower platen axis Z1/Z2;
Front and rear positioning axis U1;
Left and right positioning axis D1/D2;
Work-piece  rotation  positioning  axis  C:  DD  direct-drive
motor,   repeated   positioning   accuracy   of   5   angular
seconds;
Work-piece auxiliary front and rear positioning axis U3
Work-piece rotation follower shaft C1;
Upper compression shaft H3;

Maximum Bending Width

1500mm

Maximum Bending Height

170mm

Maximum Bending Speed

0.2s/per knife

Bending Capacity

Bending width 1500mm：Sheet iron1.2mm/Stainless steel
plate0.8mm/aluminium sheet2mm

Size of Rotating Suction Pad

Diameter100mm

Minimum   Forming   Size   of
Both Sides of Bending

280mm

Minimum   Forming   Size   of
Both Sides of Bending

180mm（Upper Pressing by Claw Type of Holding Plate /
Rear Positioning Via Bending Active Tool）

Minimum for Forming Size of
Four Sides of Bending

400X280mm

Maximum  Expanded  Size  of
Sheet Metal

1500X1200mm

Bending Angle Tolerance

±1degree

Bending Dimension Tolerance

±0.2mm

Rated Voltage

380VAC

Peak Power

20KW

Average Power

5KW

Noise

About 60dB

Overall Dimension

About L5100X W2200X H2800

Total Weight

About 16T

Main Components

Servo System

NEWLANDER

DD Direct Drive system

NEWLANDER

Screw

Nanjing Arts& Crafts (customized by KCM)/Taiwan TBI

Guide

Taiwan Dinghan

Reducer

NEWLANDER

Lathe bed

Q235

CNC system

SL300-PCx Brand of bending unit:   KCM

Servo System

Ether CAT bus: high-speed industrial servo bus control
64-axis servo system is supported as standard:
The bending mechanism supports 16-axis control;
The loading mechanism supports 16-axis control;
The tool mechanism supports 32-axis control.

Minimum Control Unit

0.001mm

Maximum      Fast      Forward
Speed

120 m/min

Repetitive               Positioning
Accuracy

±0.005mm

Direct Programming Function

Table row editing

2D Programming Function

2D DXF drawing import automatic production processing
program

Bending Process

Upper bend; Lower bend; Bend Upper arc; Bend down the
arc; Up-fold dead edge; Various bending process types,
such as down-folding dead edge, are optional;

Rotation    Function    in    Any
Direction

Rotation in any direction during sheet metal bending

Bending    Function    at    Any
Angle

During  sheet  metal  bending,  bending  at  any  angle  is
supported
(The minimum angle depends on the slope of the press
tool)

Arc Bending Function

Support arc bending function

Electronic             Hand-wheel
Function

Support hand-wheel simulation bending function

Automatic Tool   Function

Optional

Automatic       Loading       and
Unloading Interface

Optional

Automatic    Production    Lline
Connection Interface

Optional

Extended password protection

Support delayed password protection function

Language

Chinese

English

Ambient                temperature
adaptability

Working ambient temperature 0~50 ℃
Storage environment temperature - 20~60 ℃

Relative   humidity   range   of
working environment

30%～90%RH
