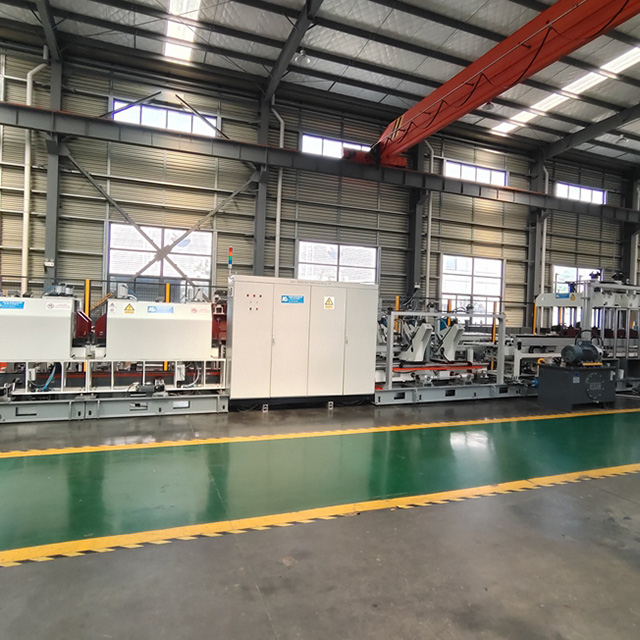

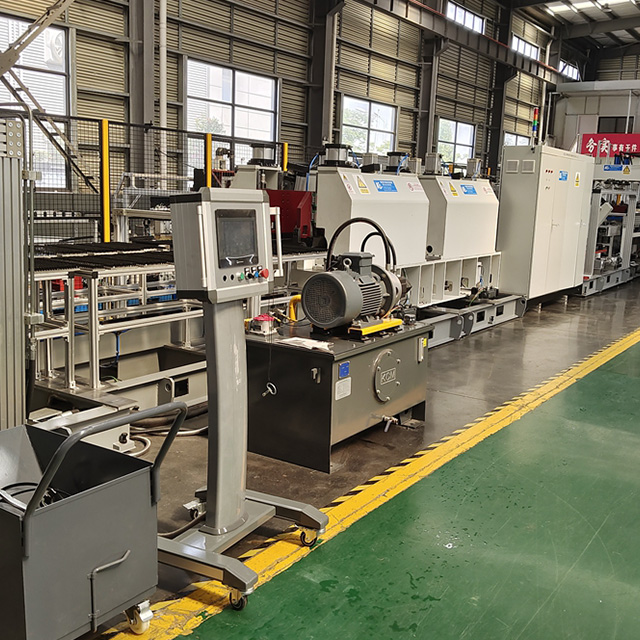

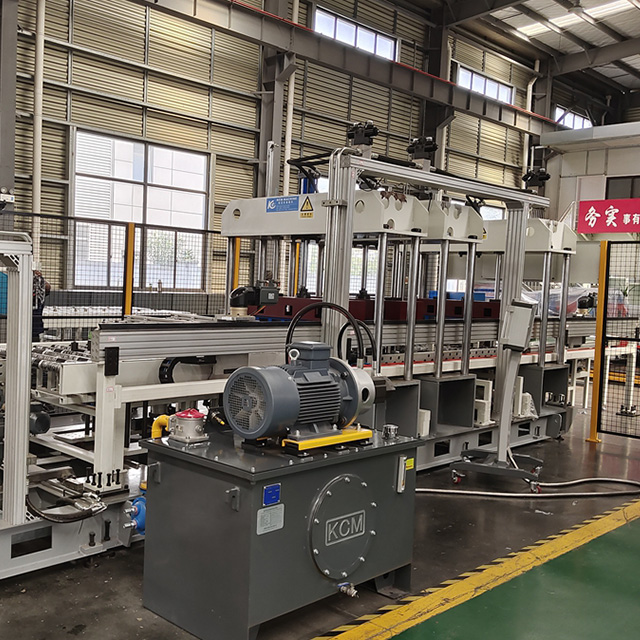

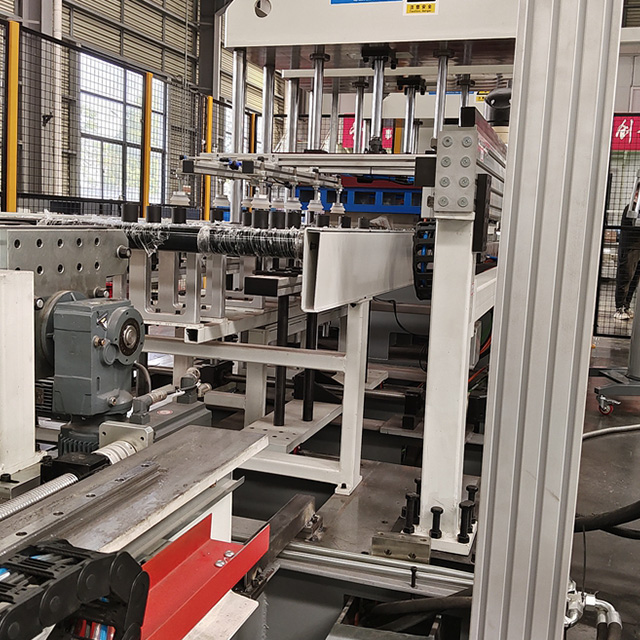

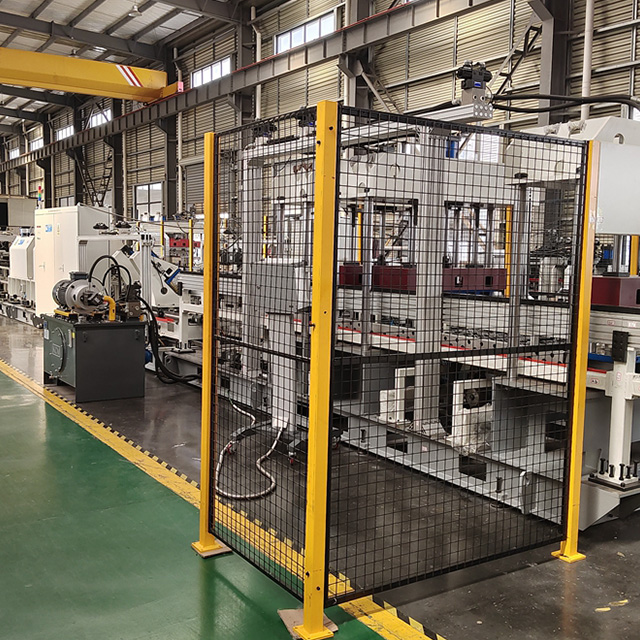

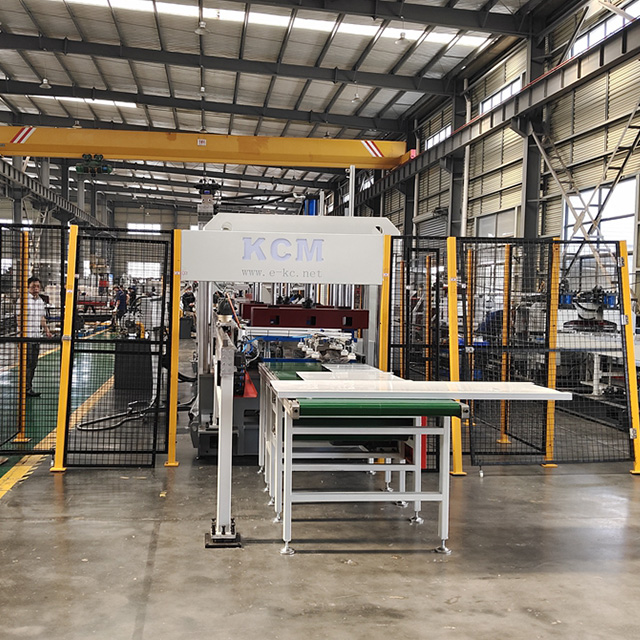

This line main consists of automatic loading with display punching machine, punching machine I, punching machine II, punching machine III, both side bending machine1, both side bending machine 2, transition station, upper and lower flanging and handel flanging machine, display flanging machine, unloading stationary unloading table and pneumatic system, hydraulic system, electrical control system etc.
Given the diverse designs of refrigerator door shell, this proposal is for reference only. Some designs are highly complex and may require additional production stations, while others feature simpler designs that can be manufactured with just a few basic stations. Therefore, the final technical parameters should be determined based on the client's product drawings.
Technical Specifications
Category | Details |
Material | Uncoated cold rolled steel. Thickness 0.5 - 0.6 mm; |
Processing range (after forming) | Width: 568 ± 0.5 mm； Length: 380 - 1750mm (with end flanging product) |
Working mode | In the length direction, it adopts clamp to carry the metal sheet finishing punching. |
Cycle time | less than 24s/p |
Size of equipment (reference) | 300000×5000mm |
The equipment height | 1000mm over ground |
Equipment process precision | Punching :≤±0.1mm; Forming ：≤±0.3mm; Others conform to the drawing requirement from Party A. |
Station number | Depending on the product design demand. |
Direction | from right to left relative to the operator. |
Sheet moving direction | from right to left |
Total electric capacity | about 110KVA(380V 50HZ). It depends on the final design. |
Air Supply | 0.6 - 0.8MPa |
Water Supply | Industry water（through Chiller） |
Equipment Color | Upper RAL9002, Foundation RAL7043, Moveable part RAL2004 |
