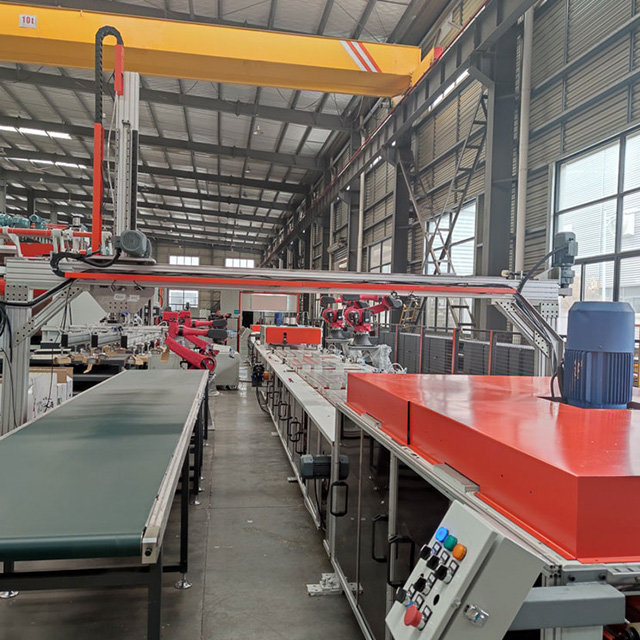

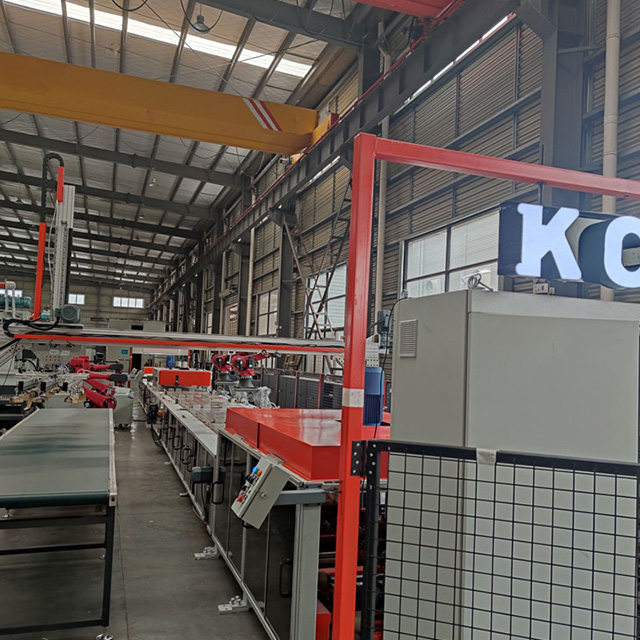

Glass Door Gluing And Pasting Machine

Technical Specifications

This SPM for the purpose of making Automatic Glue Injection and Pasting by Pressing Tools between Fridge Door.

• Equipment Outer Dimension: Around 20000×3500×3000mm;（Waiting for confirmation）

• Height of Movement Leveling: From Ground by ≥900mm;

• Suitable Door Size: ≤2000*800mm;

• Circle Time of Production Rate: 20 Seconds per Jig ( Each Jig will be 2 Doors/ including time of Keeping Pressure by 10 Seconds/ not including Manual Operation Time); (Waiting for confirmation)

Work Process

Manually Loading Plastic Frame ( Same Time for Both Two) --- Button for Automatic Clamping Frame --- Keeping Tight Clamping until to the Position for Glue Injection Station --- Robot Injection according to Designed Model Size Track --- Moving to next station for placing Glass by Robot. This station total two robots, one robot is for inject hotmelt, at the same time another robot catch glass door for placing waiting --- Pressing Glass to Frame via Glue between them and Keeping 10 Seconds Time Holding Tightly --- Clamping and holding, convering --- Coming Out From Bottom Layer via Lifter again for Upper Side to be released Finished Door Body by Gantry system and transport to unloading conveyor line (Take the door body down manually) --- Loosing Jigs for Next Circle in Operation Again.

Detailed Explanation

• When Assembled Door Body Coming out from bottom Line to Upper Layer, and moving into the 1st satiation for Unloading, Robot Picking up Ready Goods to Platform for Removing again Manually to needed place for Storage. Notes: Automation to Conveyor, and Lifting Rack and then for auto stacking will be next stage after first Project is successfully launched by normal production.

• Manual Placing Plastic Frame onto the Jig for both of Fridge and Freezer Door.

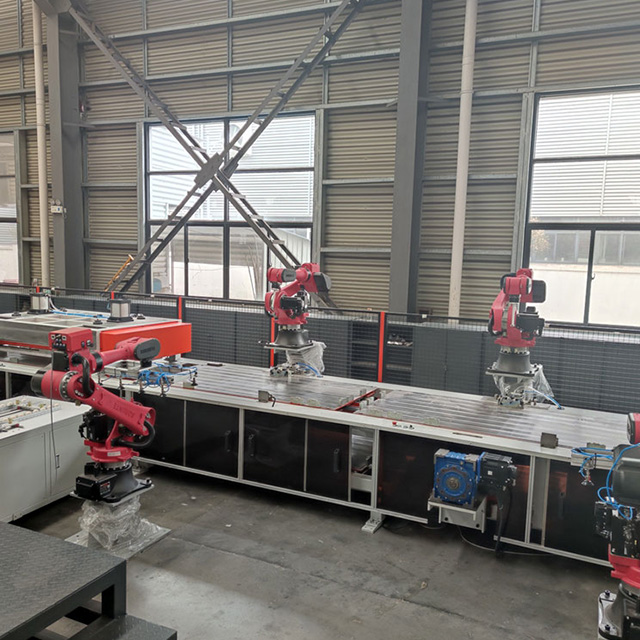

• Robot for Glue Injection to the surface of Plastic Frame based on program Diagram according to each size of different Models Plastic Frame Size.

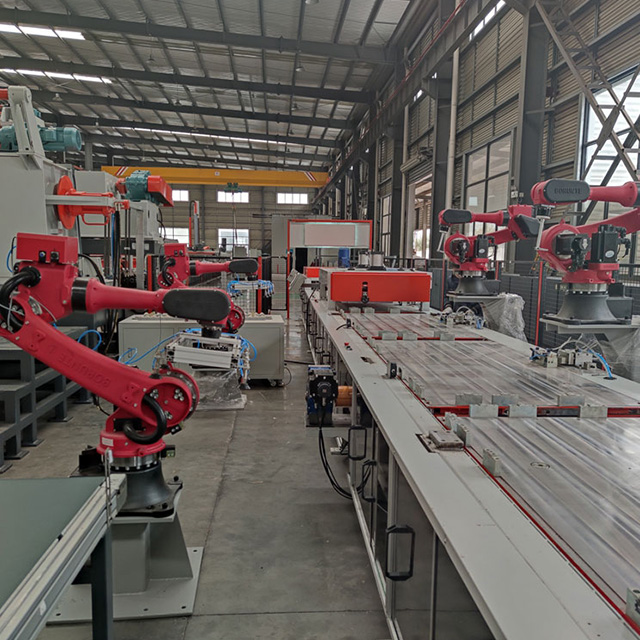

• Robot Picking up Glass to Positioning Device, and then Picking up again from Positioning Device to Frame with Glue.

• Pressing and holding 10 seconds so that Glass can be tightened joint with frame.

• Quality Inspection.

• Down to Bottom by Lifter for another circle in production.

• In the end of Line there is Mold Changing Position for different Models on line.

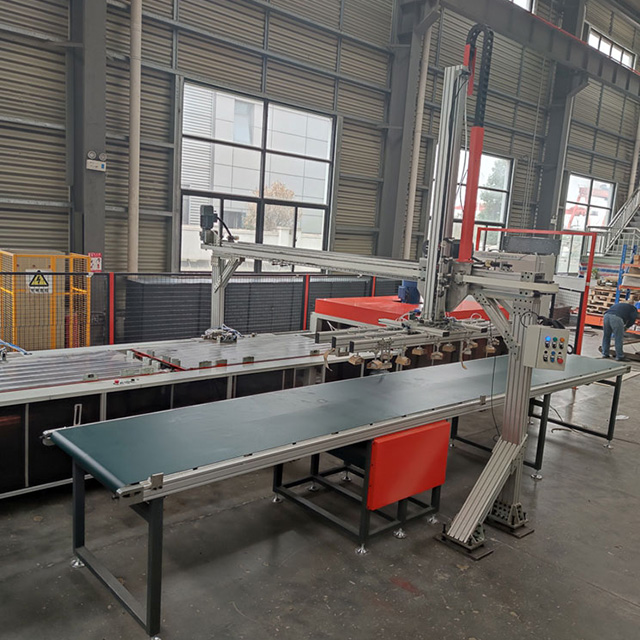

• Unloading conveyor use gantry system.

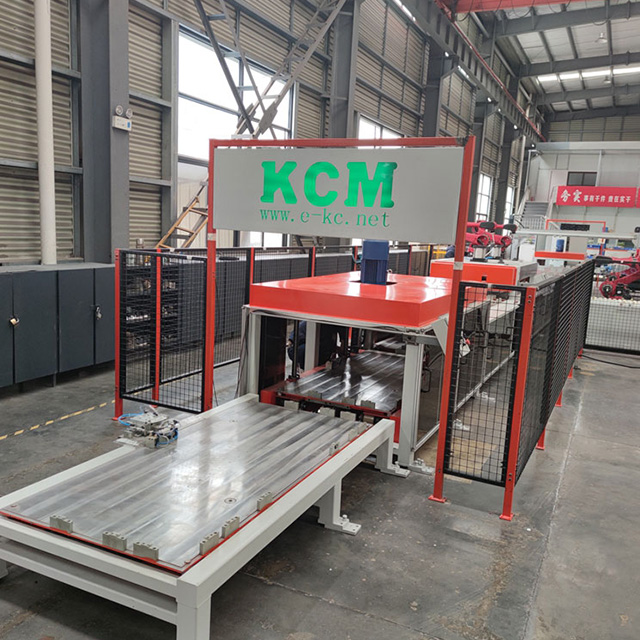

• Press machine: In order to meet different requests of many kinds of production, an adjustable press station is needed.
