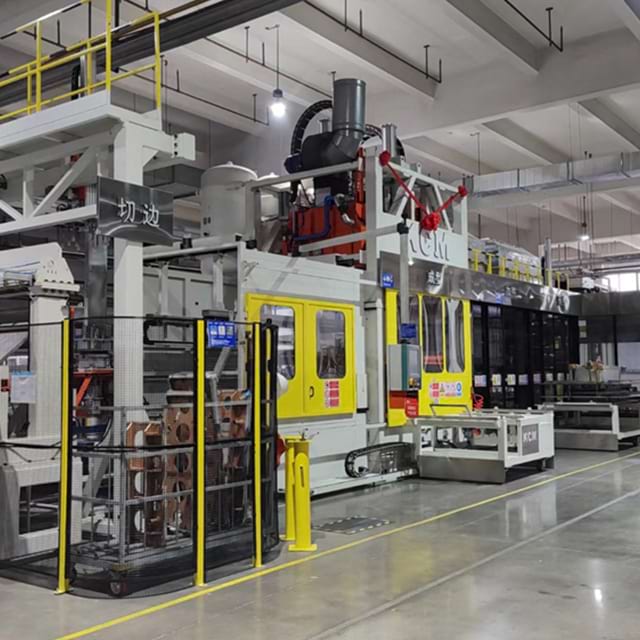

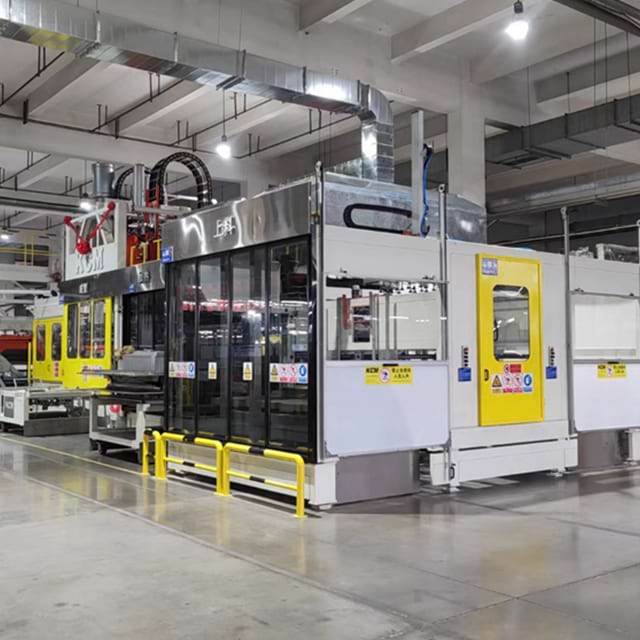

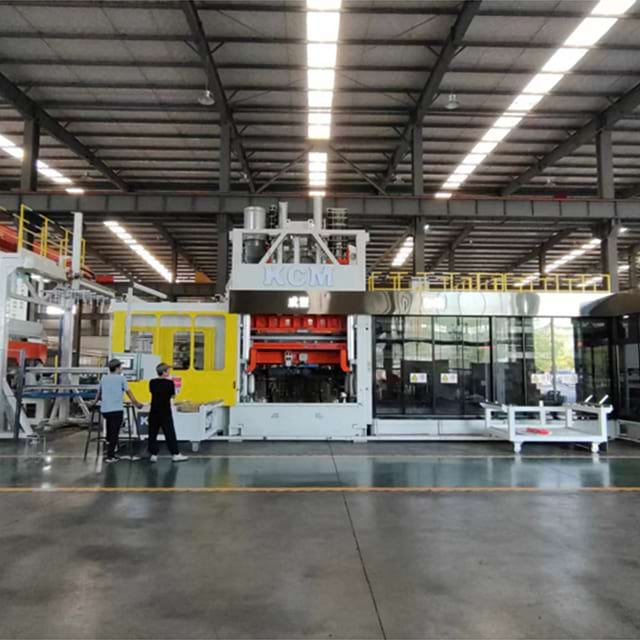

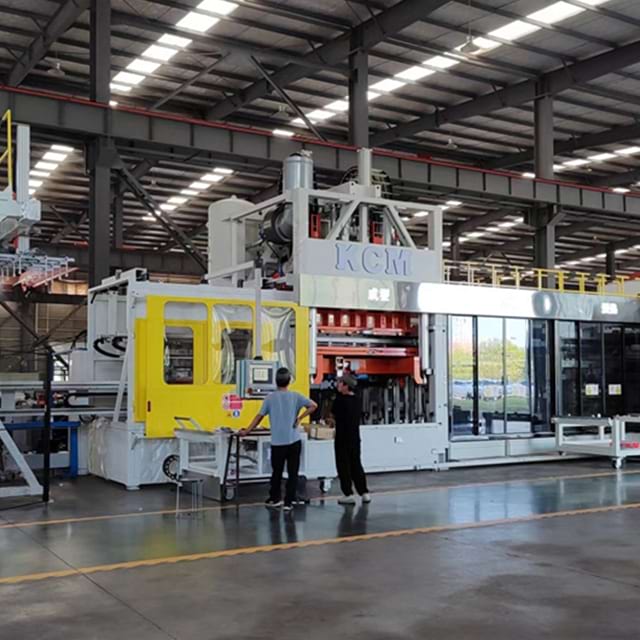

When the equipment on operating
Using forklift to pick up HIPS & ABS Sheet and put them on loading trolleys, the Sheet Stacking height should not higher more than 1000mm.
Pushing the trolleys into loading station, closing the safety door, Start operating loading station.
Sheet will be positioning via 1st centering device, sucker manipulator will pick sheets toward the 2nd centering table, Then the tray lift sheets to the level of clamper, which clinch sheets and move forward to Heating Station.

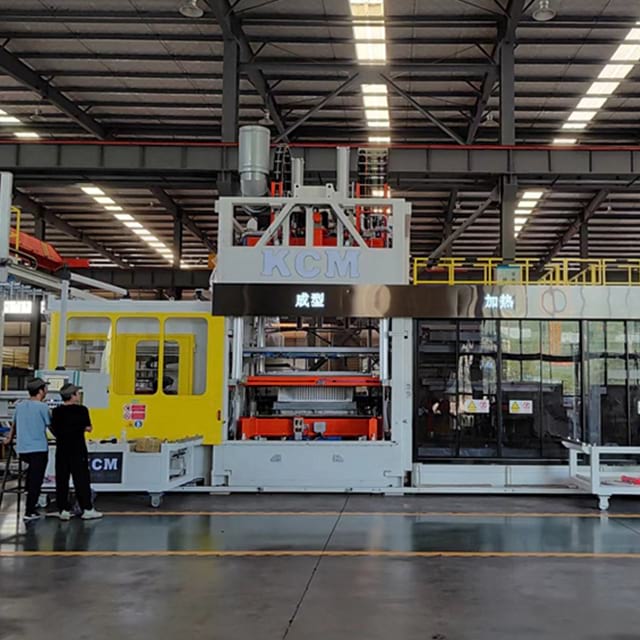

Then move to Forming station when sheets to be full heated , Then Vacuum formed with negative pressure and compressing air Assistance at the same time, then cooling and de-molding accordingly.

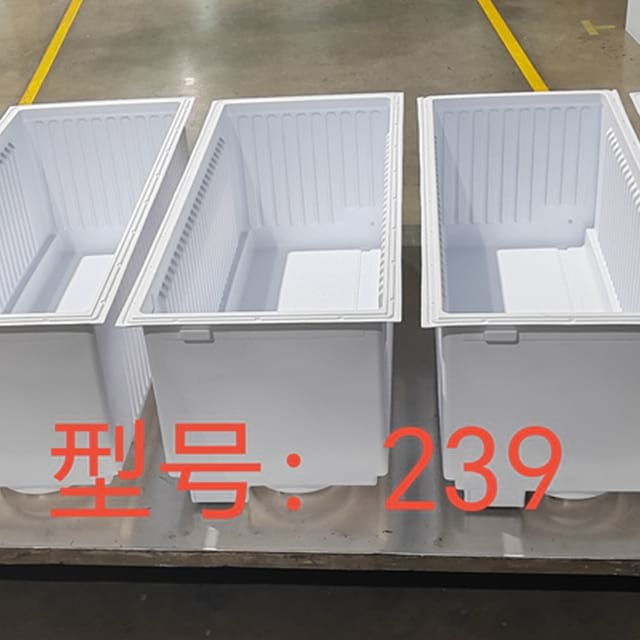

When Inner Liner has been formed Completely, then move to clamper releasing station and rotation table waiting there to pick the liner in to Trimming station.
After then a double gantry manipulator with suction pad pick the liner to multi cavity cutting station, another manipulator pick the liner onto unloading belt conveyor.
Thus the whole working cycle finished.
