Rectangle type PU Foaming Line for Door Foaming

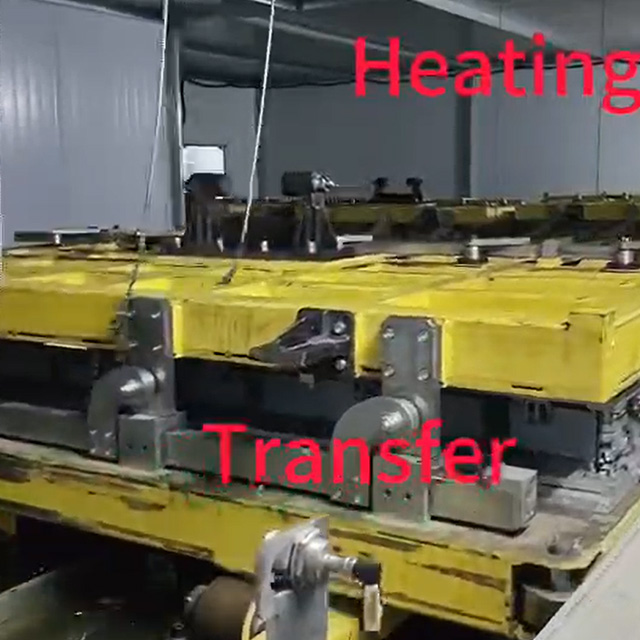

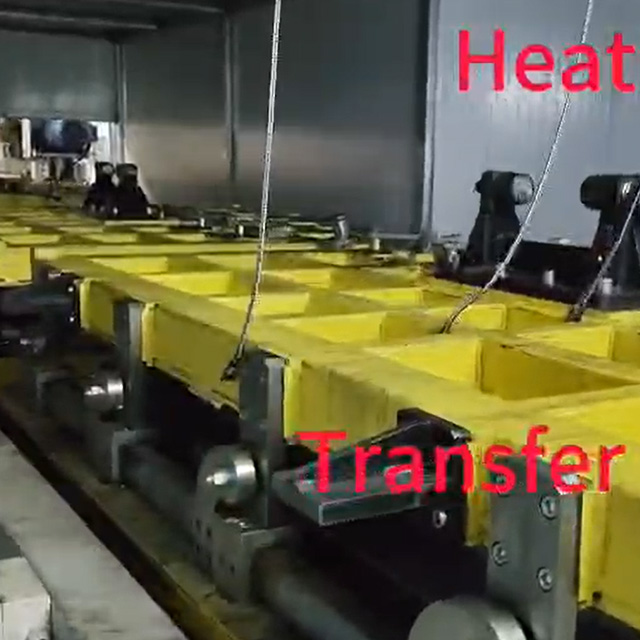

The foam line body includes:

• main clamper drive system(6 stations operation),

• 3 layers of rubber roller conveyors each 4 sections,(4*3=12 stations),

• 2 transition shuttles at both end side,

• 2 elevators at inlet and outlet of curing room

• 18 jigs( how many jigs is based on the customer’s productivity, )

• 3 sets of locking/unloading device,

• 3 sets of opening/closing arms,

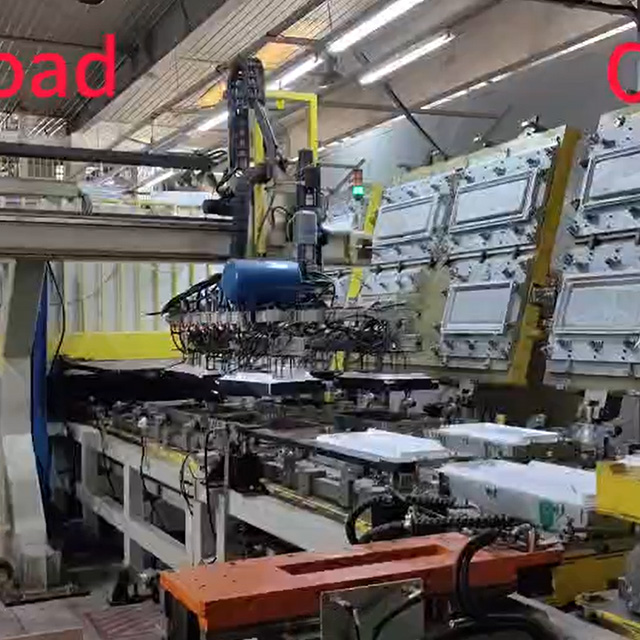

• 2 Door Gantry manipulators, one for Door unloading, the other for new metal panel loading.

• 1 automatic pouring carrier（double pouring head）

• 1 mold change station,

• 1 heating room,

• 1 set of ventilation system,

• 1 set of high pressure foaming machine platform etc(not include wet part).

• 1 set of hydraulic/Pneumatic/Electric control system

Technical Specifications
