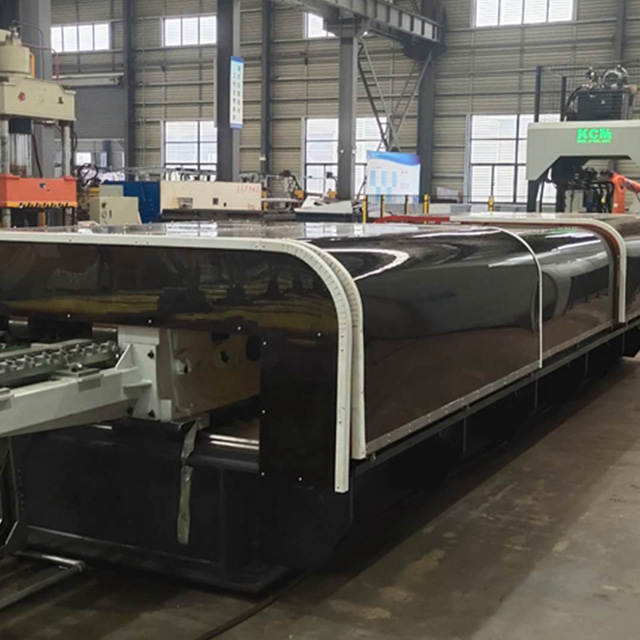

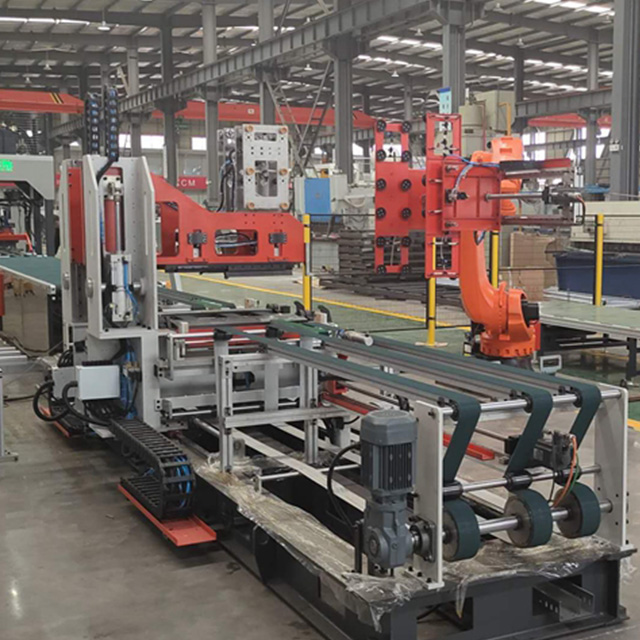

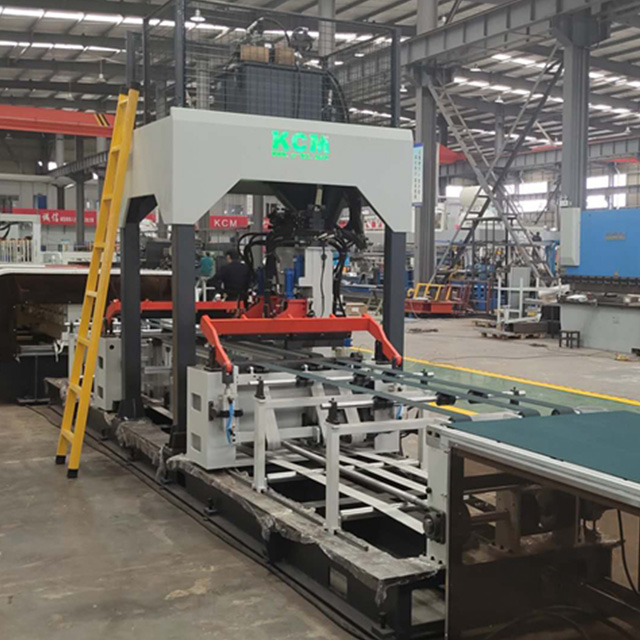

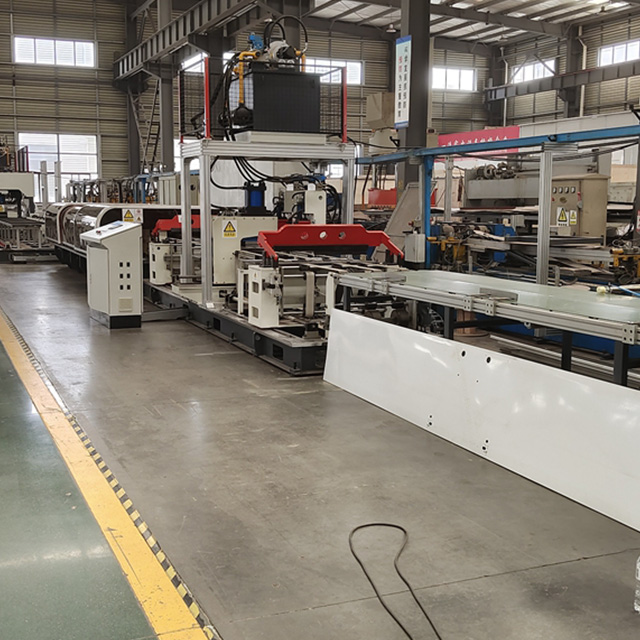

This forming line mainly compose of automatic loading machine, punching machine, 180° turn over, Roller forming machine, corner Z-L bending machine, U bending Machine, unloading machine pneumatic system, Hydraulic system, electricity control system and etc.
Technical Specifications
Performance Item | Details |
Production line Dimensions (Reference) | About L(44500)*W3500*H2500; |
Operation Standard Height | From ground 1000mm |
Circle Time and Production Rate | 32 seconds/set |

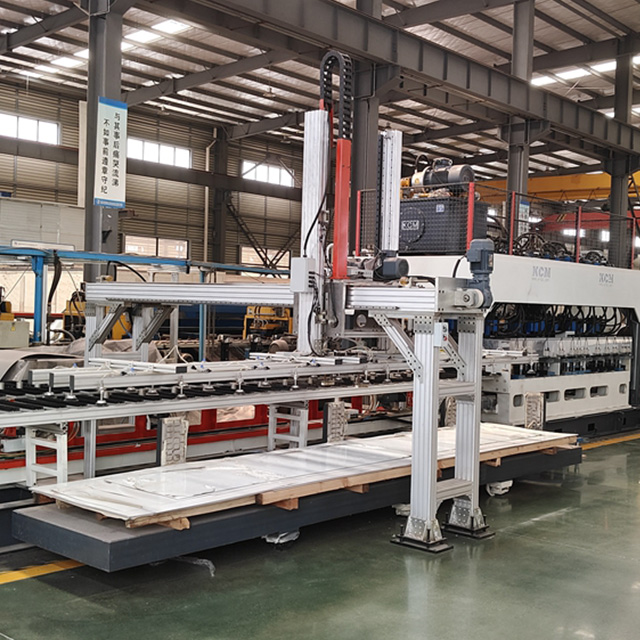

Processing Flow Sequence | Sheet Loading - Punching - 180 Degree Turnover - Roller Forming by Making Special Profile Z Folding & End Side Vertical Bending and top window punching - U-shape Final Bending - Gantry Picker for Unloading - Placing to Belt Conveyor - Manually Moving to Storage Area |
Sheet Thickness Adaption Scope | 0.4 - 0.6mm |
Material | Pre-coated metal(PCM) Sheet |
Adjustment Scope for Product Size | U shell (H*W*D)=([800~1950)x(420~920)x(420~680) |
Electric Power Supplying | AC380V, 50HZ, the total power of about 55KW |
Compressed Air Supplying | 1/2 " 0.5−0.65 Mpa |
