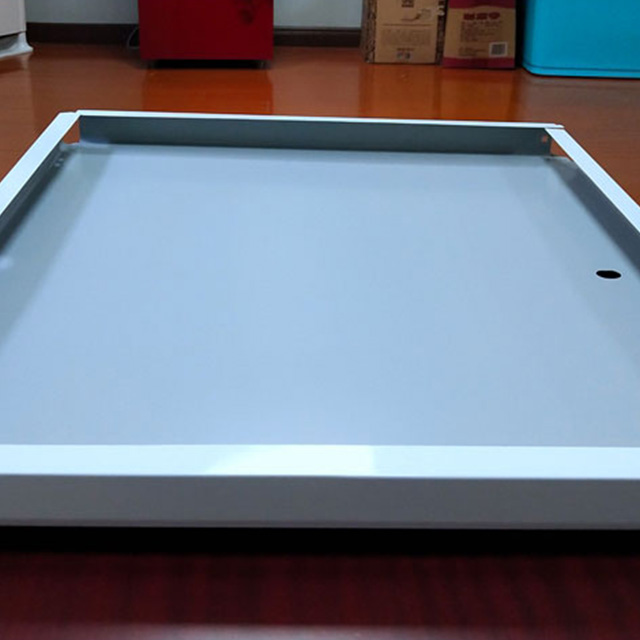

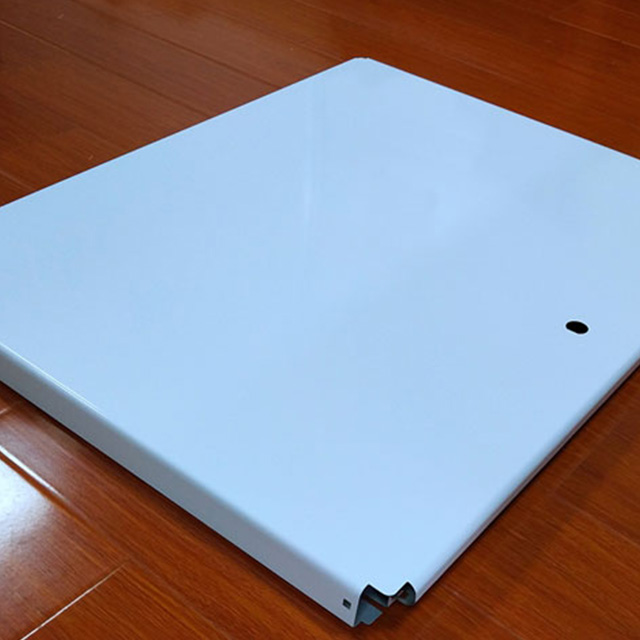

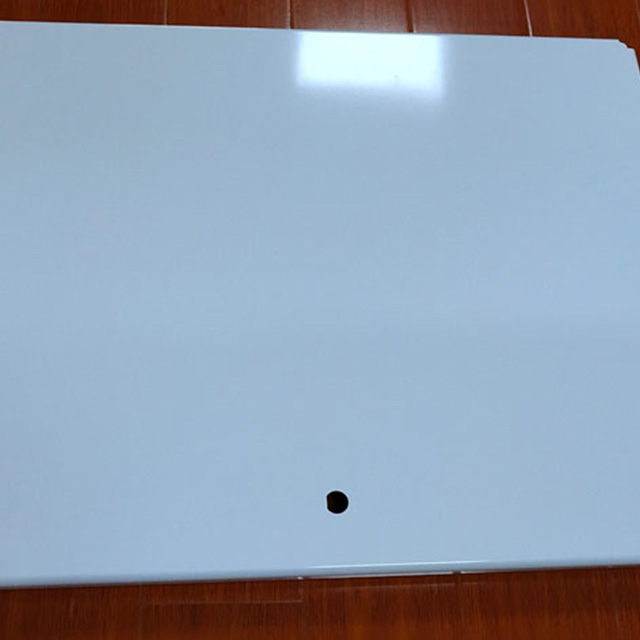

Chest Freezer Lid Metal Forming

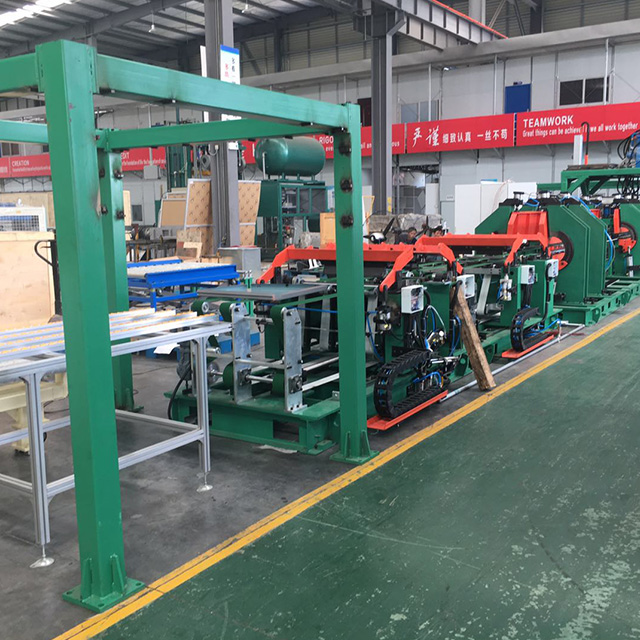

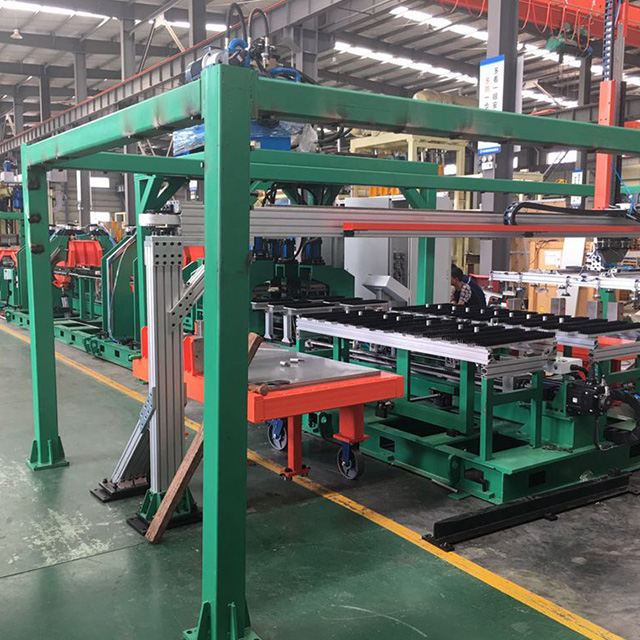

The machine is mainly composed of below stations:

1. Automatic Sheet Loading Machine;

2. Punching Machine for Holes / Slots etc;

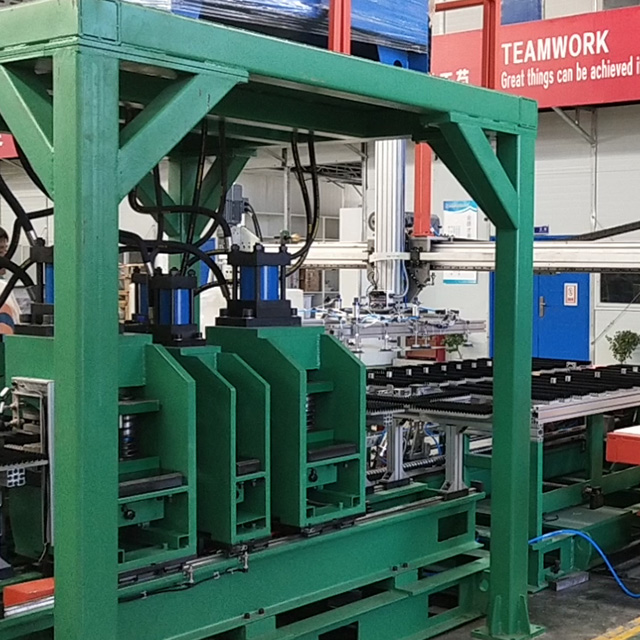

3. Two Sides Bending I;

4. Two Sides Bending II;

5. Two Sides Bending III;

6. End Side Bending For Vertical Shape;

7. End Side Bending for R8 Radius Shape;

8. Others for Unloading With Free Roller Conveyor, Pneumatic System, Hydraulic System, Electricity Control System and so on.

9. Sheet Transmission Between Neighbor Stations: In the length direction, it adopts clamp device to be selected for bringing the PP metal sheet finishing punching and both side bending.

Performance Data Of Technology

• Production line Dimensions (Reference): About L20000*W3500*H2200;

• Height for Operation Level: from ground 900mm;

• Amount of Working Stations: 7;

• Circle Time: Around 30 seconds /piece;

• Process is as follows: See Above In Details.

• Sheet Material: PP 0.4mm

• Adjustment scope for the product size: W*D= (550-650)X(600-1000)

• Electric supply: AC380V, 50HZ, the total power of about 32KW;

• Compressed Air Source: 1 / 2 "(0.5-0.65Mpa);

• Water supply: Industrial water.( 25 litres/minute)
